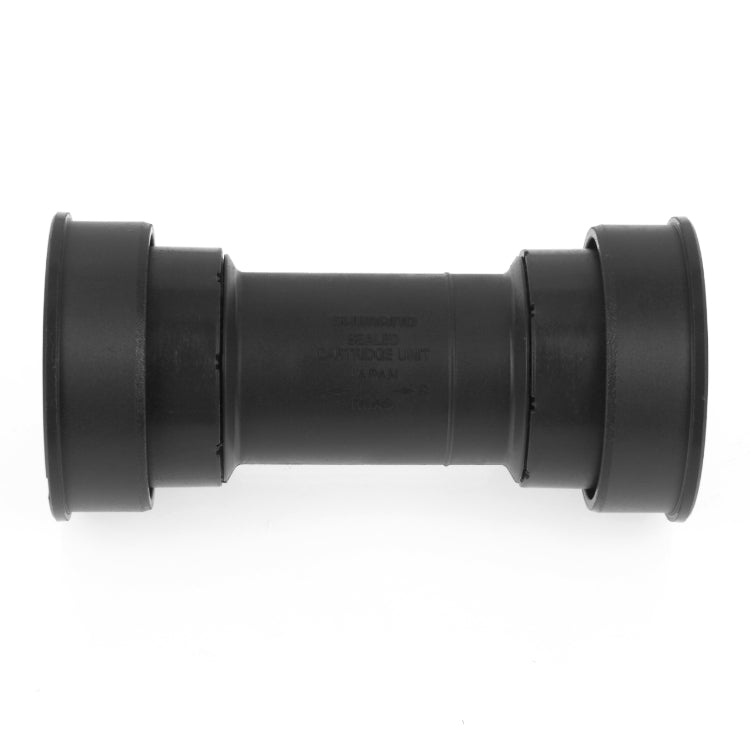

Bottom Bracket SM-BB72-41B

Thanks to the reliable bearing and sealing elements from SHIMANO, the SM-BB72-41B bottom bracket has a particularly long service life. Press-Fit bottom brackets have axles and bearings with a diameter of 24 mm, because this results in the best combination of rotational efficiency, stiffness, load capacity, tightness and weight, even with press-fit bearings.

---

Product features - Shimano SM-BB72-41B Press-fit Bottom Bracket | 86.5mm Shell Width

• Use: Road
• Model: SM-BB72-41B
• BB-Type: Press Fit (41x24mm)
• Press-Fit BB shell width: 86.5mm
• Shell diameter: 41mm

Compatibility

• Ultegra FC-R8100 / FC-R8100-P / FC-R8000 / FC-6800 / FC-6700 / FC-6700 G / FC-6750 / FC-6750G / FC-6703 / FC-6703G
• 105 FC-R7100 / FC-R7000 / FC-5800 / FC-5700 / FC-5750 / FC-5703
• GRX FC-RX820 / FC-RX810
• Tiagra FC-4600 / FC-4650 / FC-4603
• Sora FC-3550 / FC-3503
• FC-RS500
• FC-CX50
• FC-R603 / FC-R563 / FC-R460 / FC-R350

Material

• Bottom Bracket Cup: Resin
• Bearings: Steel

Weight

• approx. 69g (manufacturur information)
