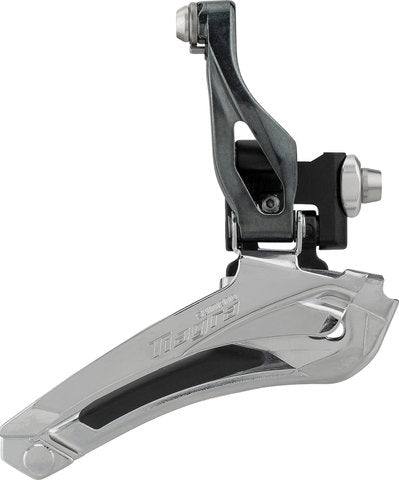

Shimano Tiagra Front Derailleur FD-4700-F 2x

The Tiagra FD-4700 Front Derailleur by Shimano - Stable, smooth shifting

The Shimano Tiagra FD-4700 front derailleur ensures smooth and stable shifting on road bikes with two chainrings and 10-speed drivetrains. It impresses with its smooth operation and its compatibility with modern HG-X mountain bike chains, which are guided securely thanks to its fine tuning. The parallelogram of the front derailleur is made of lightweight aluminium, the cage plates are made of steel. The FD-4700 is available for clamp and braze-on mounting.

Specifications:

Series:

Tiagra 4700

Application:

Road, City

Gearing:

2x (combined w/ 10-speed)

Chainstay Angle:

61-66°

Chainline:

43.5 mm

Chainring Size (max.):

46-52 teeth

Capacity:

16-tooth

Cable Routing:

down pull

Movement:

down-swing

Mount:

braze-on, clamp

Clamp Diameter:

31.8 mm w/adapter 28.6 mm, 34.9 mm

Compatibility:

HG-X chains, CN-HG500 chain
