Orbea
TERRA H30 1X S IVO-MET
TERRA H30 1X S IVO-MET
Couldn't load pickup availability

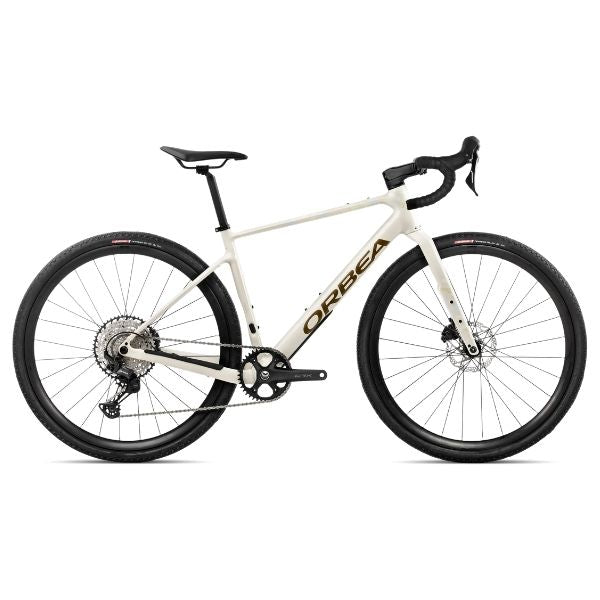

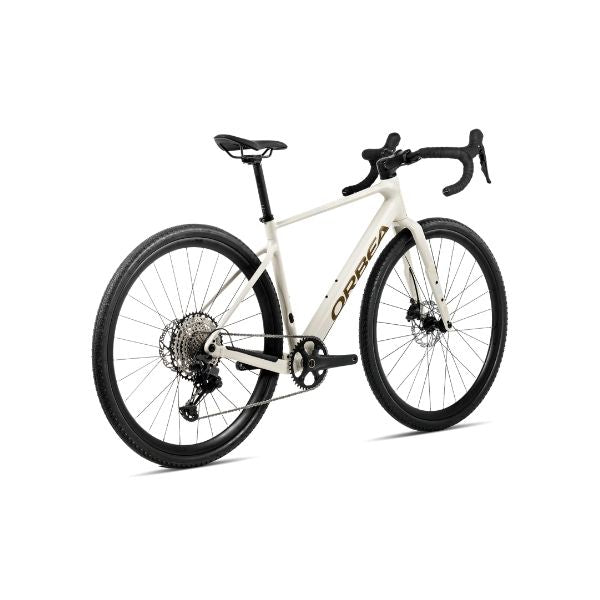

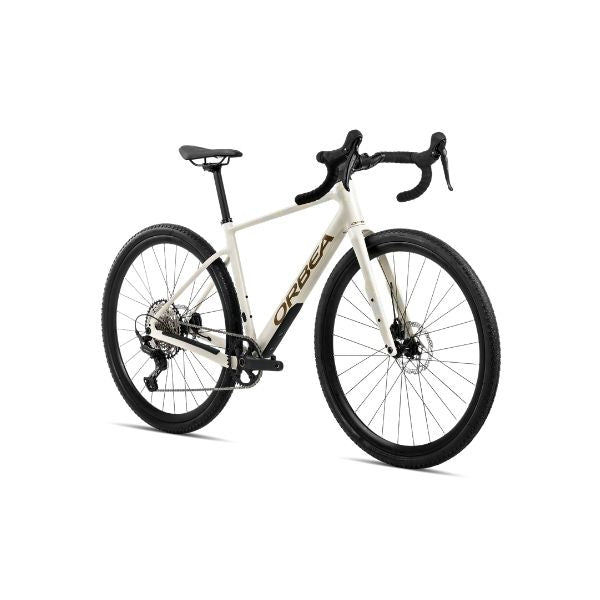

The Orbea Terra Hydro is a versatile gravel bike designed to handle everything from fast gravel roads and mixed-surface adventures to demanding off-road routes. Its hydroformed triple-butted aluminium frame is paired with a full-carbon Orbea Terra ICR fork, delivering a strong and capable platform while keeping the ride comfortable and responsive.
The bike features a Shimano GRX RX610 drivetrain with a 40T crankset and a wide-range 10-51T 12-speed cassette, giving you the gearing needed for both fast sections and steep climbs. Shimano RX410 hydraulic disc brakes provide reliable stopping power and control across changing terrain.
With tubeless-ready alloy 700c wheels, wide 700x45c Terreno T50 Mixed Gravel Sport tyres, and a carbon seatpost, the Terra Hydro is built for stability and confidence on rough surfaces. The MMS multi-mount system and fender-ready full-carbon fork also add practical versatility for longer gravel adventures and bikepacking setups.
A capable, comfortable, and adventure-ready gravel bike built to take you beyond the pavement.
| Component | Specification / Details |
|---|---|
| Fork | Orbea Terra ICR, full carbon, 1-1/8" - 1.5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready |
| Frame | Orbea Terra Hydro Disc, hydroformed triple butted aluminium, HS 1.5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27.2mm seat tube |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Crankset | Shimano GRX RX610 40T |
| Shifters | Shimano GRX RX610 |
| Cassette | Shimano CS-M7200 10-51T, 12-Speed |
| Rear Derailleur | Shimano GRX RX822 SGS |
| Chain | Shimano M6100 |
| Handlebar | OC Riser Handlebar GR31-R |
| Stem | OC Road Performance RP23, -5º |
| Brakes | Shimano RX410 Hydraulic Disc |
| Brakes Configuration | N/A |
| Wheels | Alloy, Tubeless, 700c, 21c |
| Tyres | Terreno T50 Mixed Gravel Sport Rigid 700x45c |
| Front Wheel Axle | Orbea Thru Axle 12x100mm M12xP1 Hollow |
| Rear Wheel Axle | Orbea Thru Axle 12x142mm M12xP1 Solid Inner Threaded |
| Saddle | Fizik Terra Argo X7 Aluminium Rail 140mm |
| Seatpost | SP 0.2 Carbon, 27.2mm, Setback 20 |
| Mudguard | N/A |
| Handlebar Tape | Orbea Eva |
